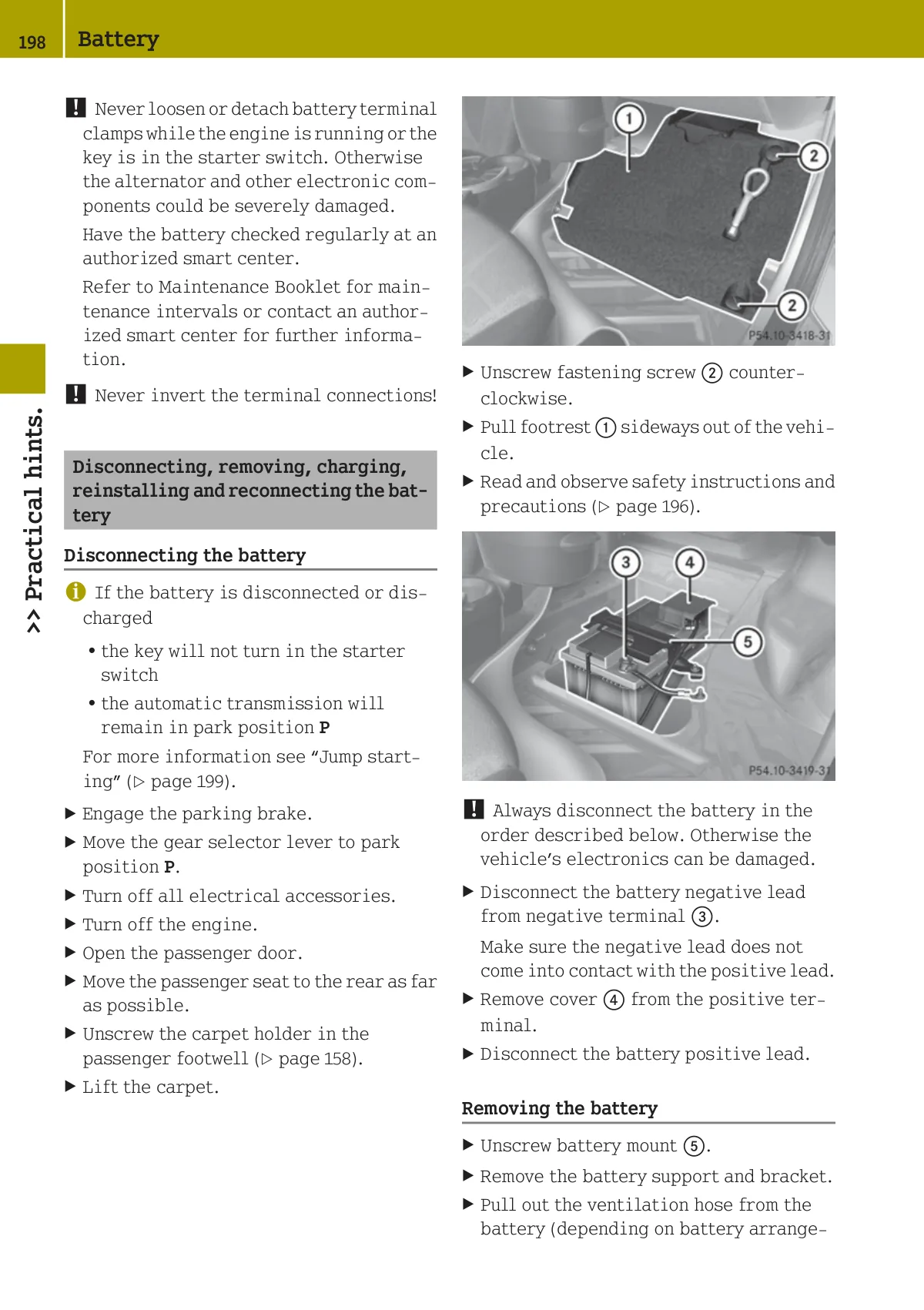

Battery disconnection, removal, and reinstallation procedure with numbered callouts showing terminal locations and mounting points.

Engine bay battery with labeled fasteners and terminal connections for service procedures.
