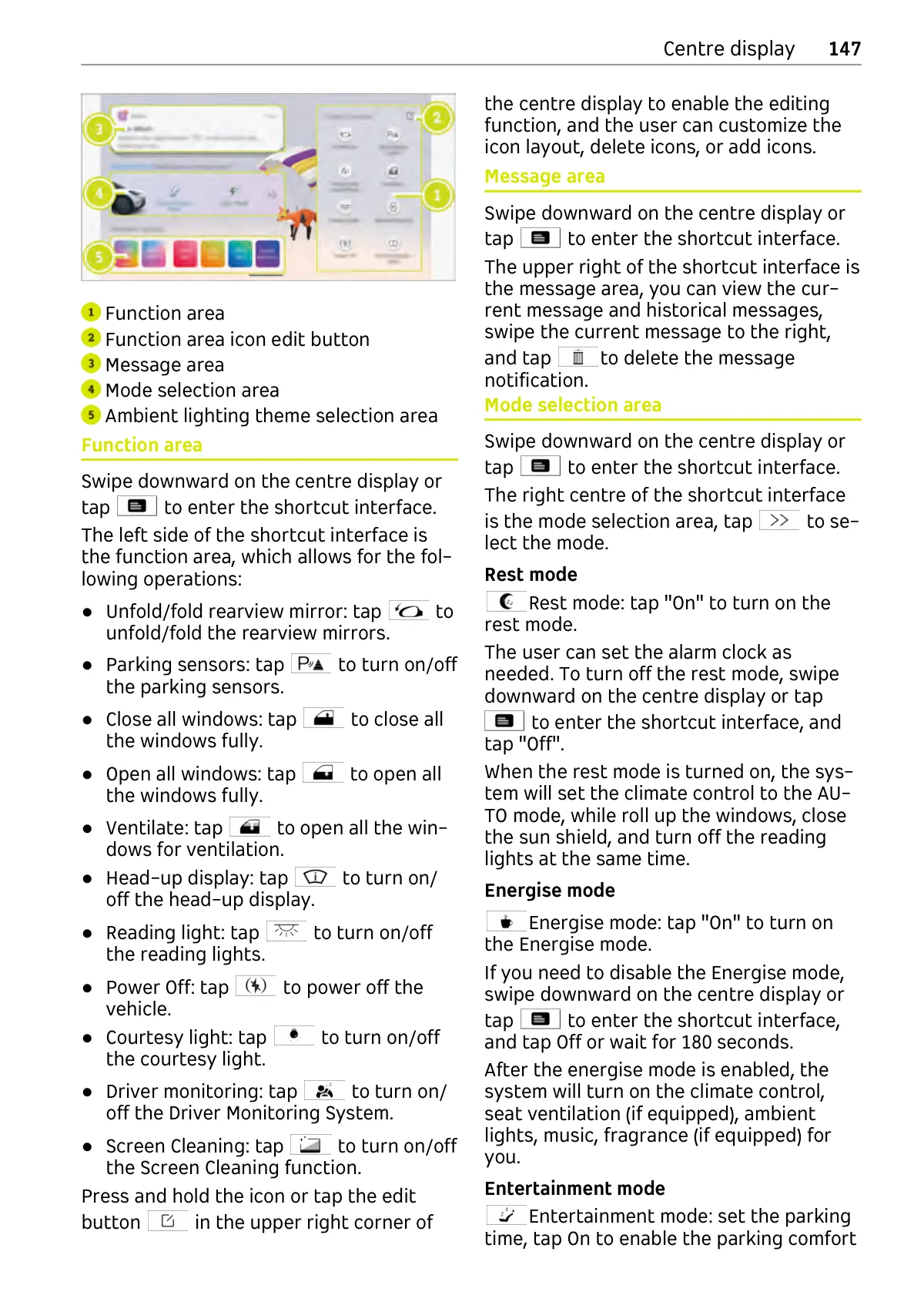

Centre display interface functions including function area, message area, mode selection, and ambient lighting theme controls.

Infotainment display layout with five numbered callout areas showing different interactive zones and controls.
