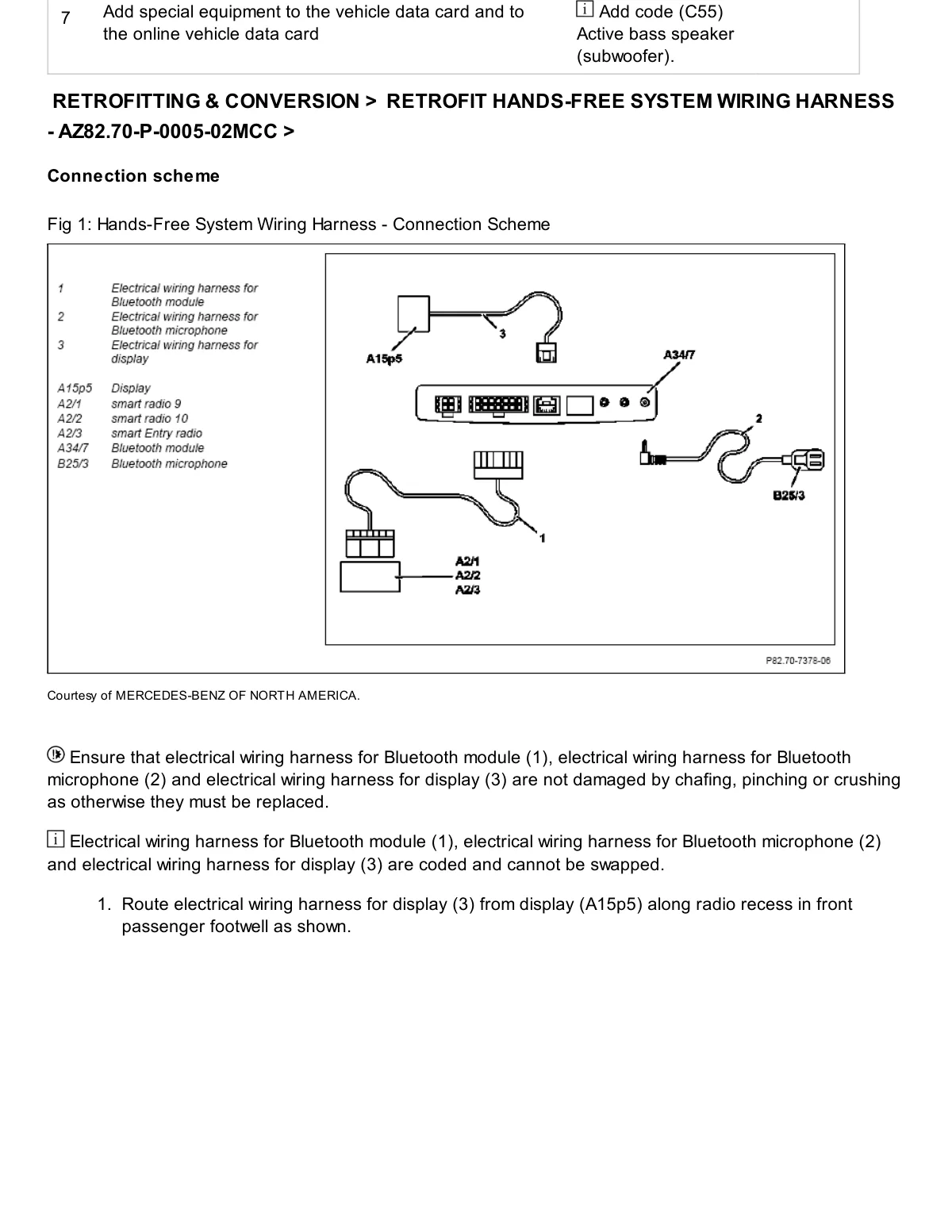

Hands-free system wiring harness connection scheme for Bluetooth module, microphone, and display retrofit AZ82.70-P-0005-02MCC.

Wiring diagram showing Bluetooth module, microphone, display, and smart radio connections with labeled harnesses.
