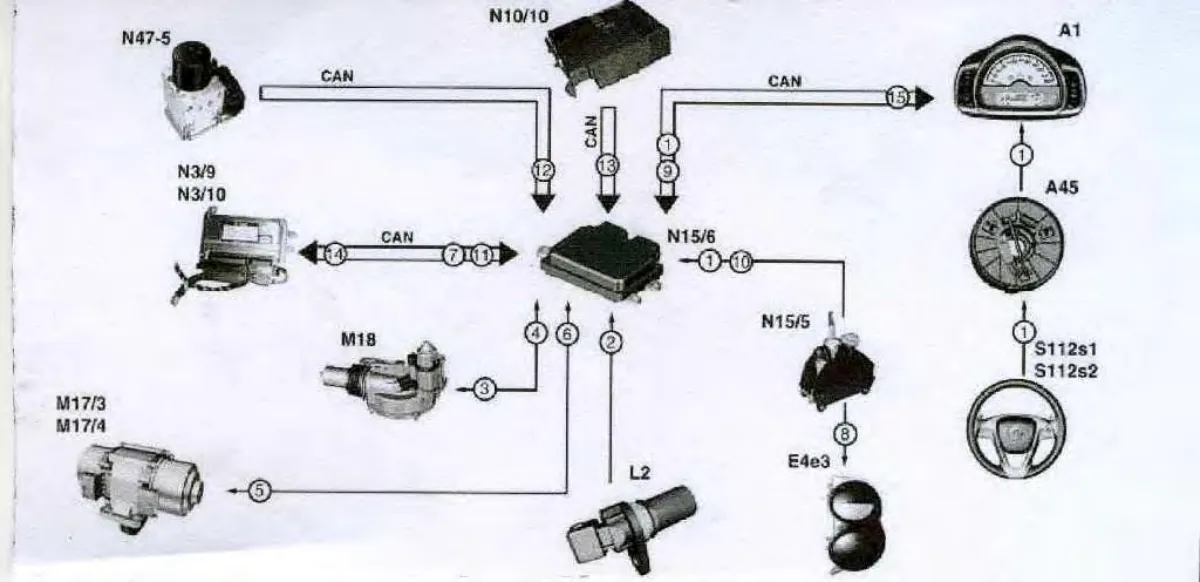

CAN bus network schematic showing connections between engine control unit N3/9, body control module N10/10, instrument cluster A1, steering wheel controls A45, and various sensors including mass airflow M17/3, fuel injector M18, and airbag E4e3.
%20-%20Technical%20%26%20Service%20Reference/p224.webp)
See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
