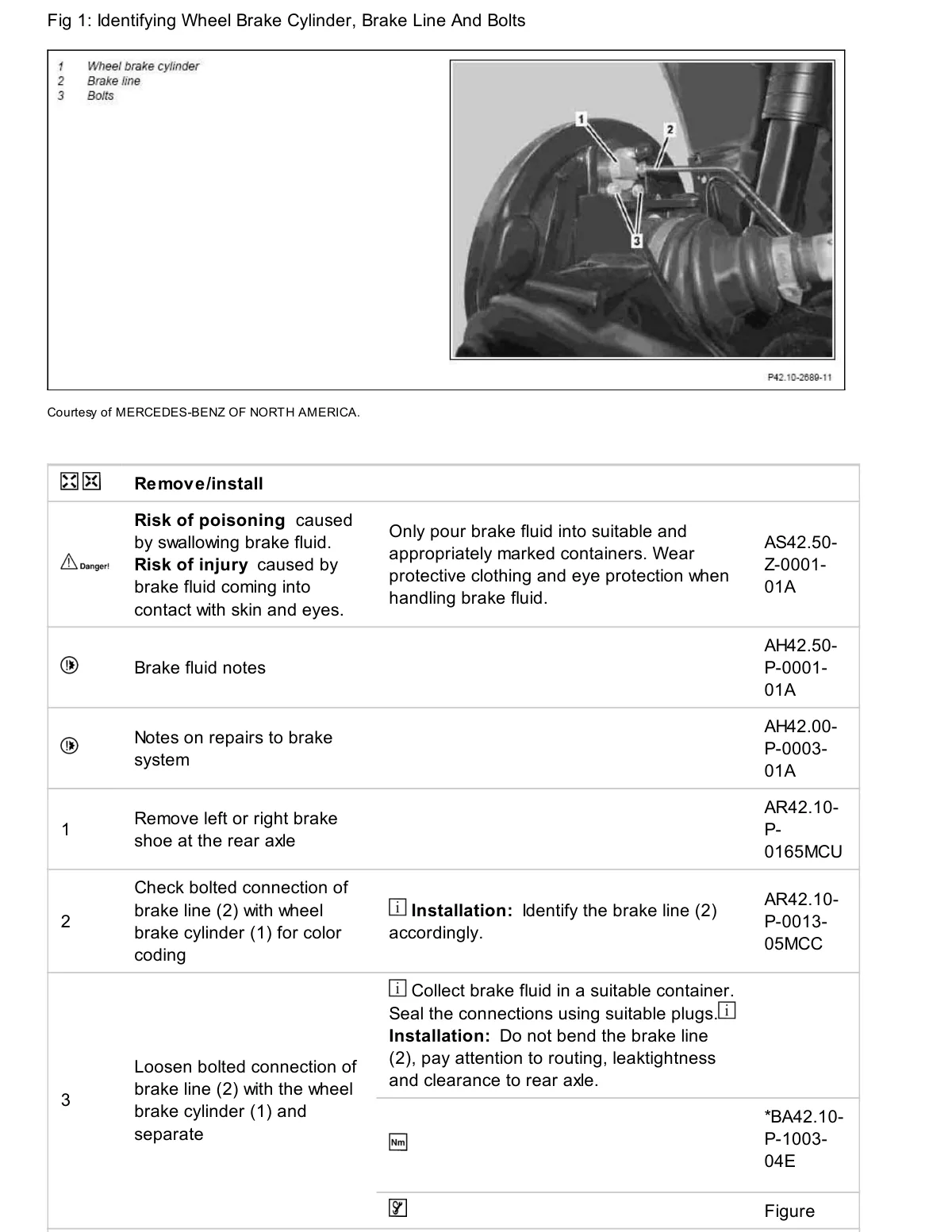

Wheel brake cylinder, brake line, and bolts identification and removal procedure for Smart vehicles 450/451/452/454.

Technical diagram showing wheel brake cylinder assembly with three numbered callouts and service steps.
