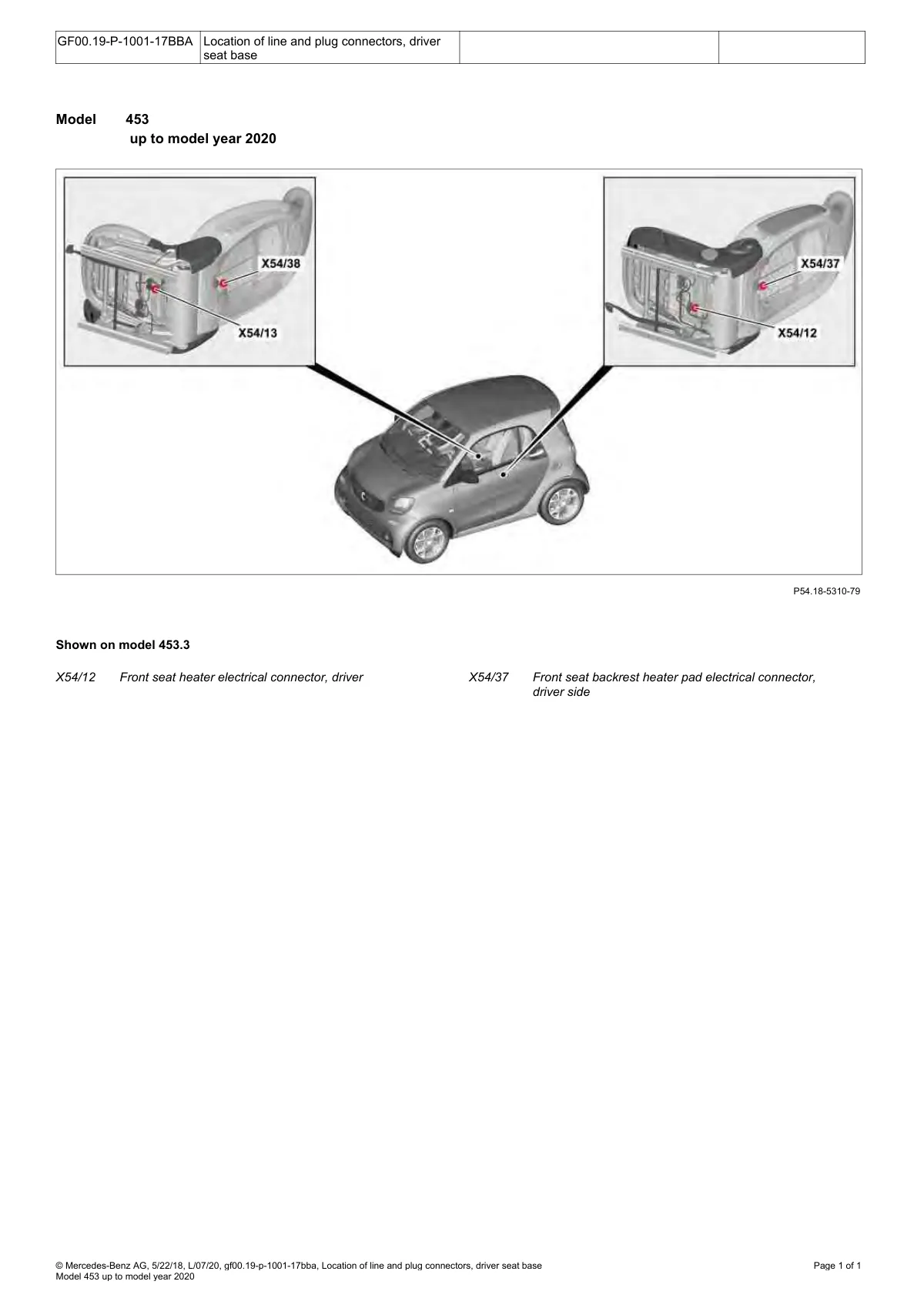

Driver seat base electrical connectors and heater pad locations, chassis 453 up to 2020.

Smart 453 driver seat showing four electrical connector callouts for heater and backrest pad wiring.
