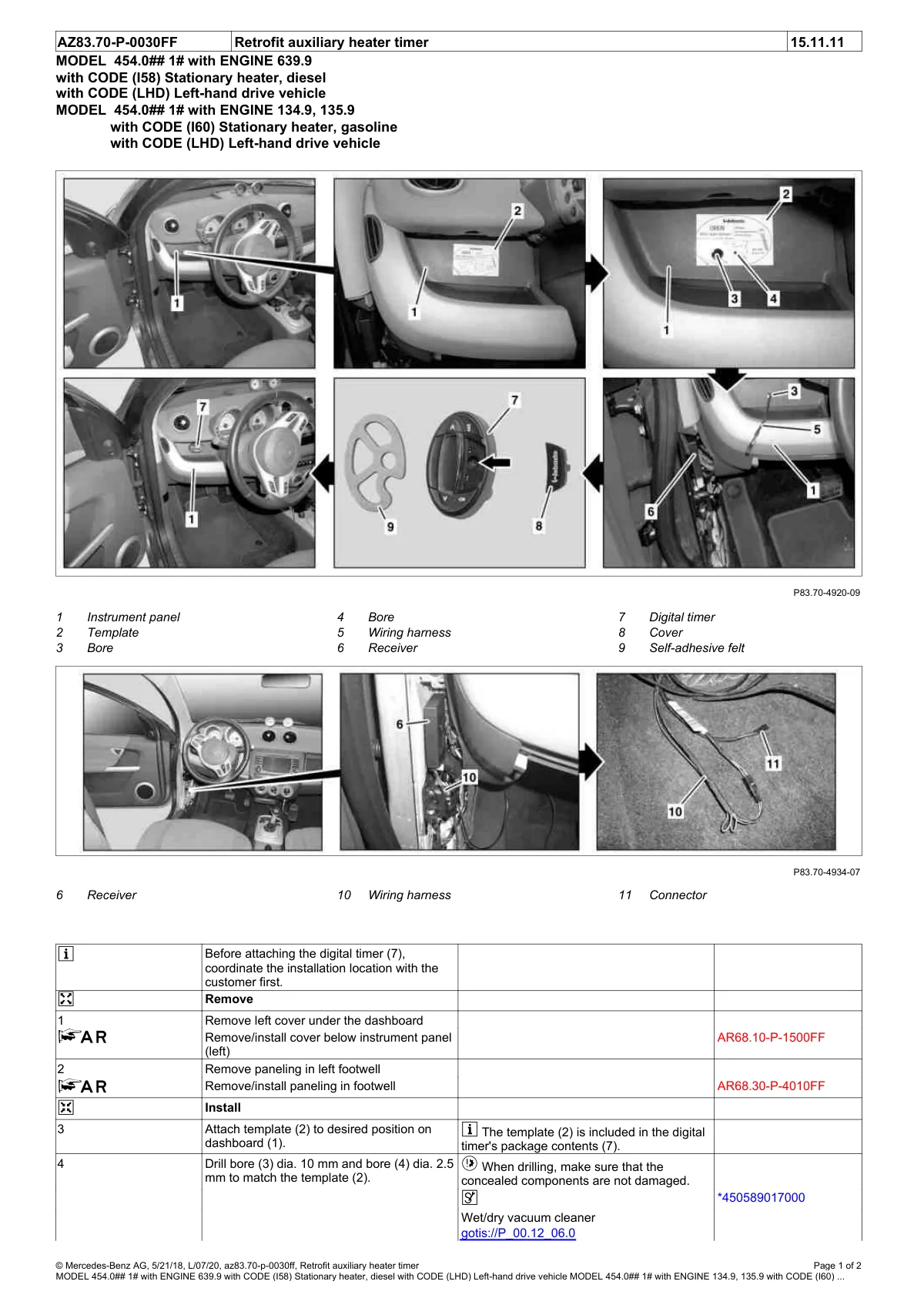

Retrofit auxiliary heater timer installation procedure for Smart Fortwo 454 with numbered callouts showing dashboard removal, template positioning, and wiring harness routing.

Step-by-step installation guide for digital timer retrofit with 11 numbered callouts showing dashboard, interior panels, and wiring locations.
