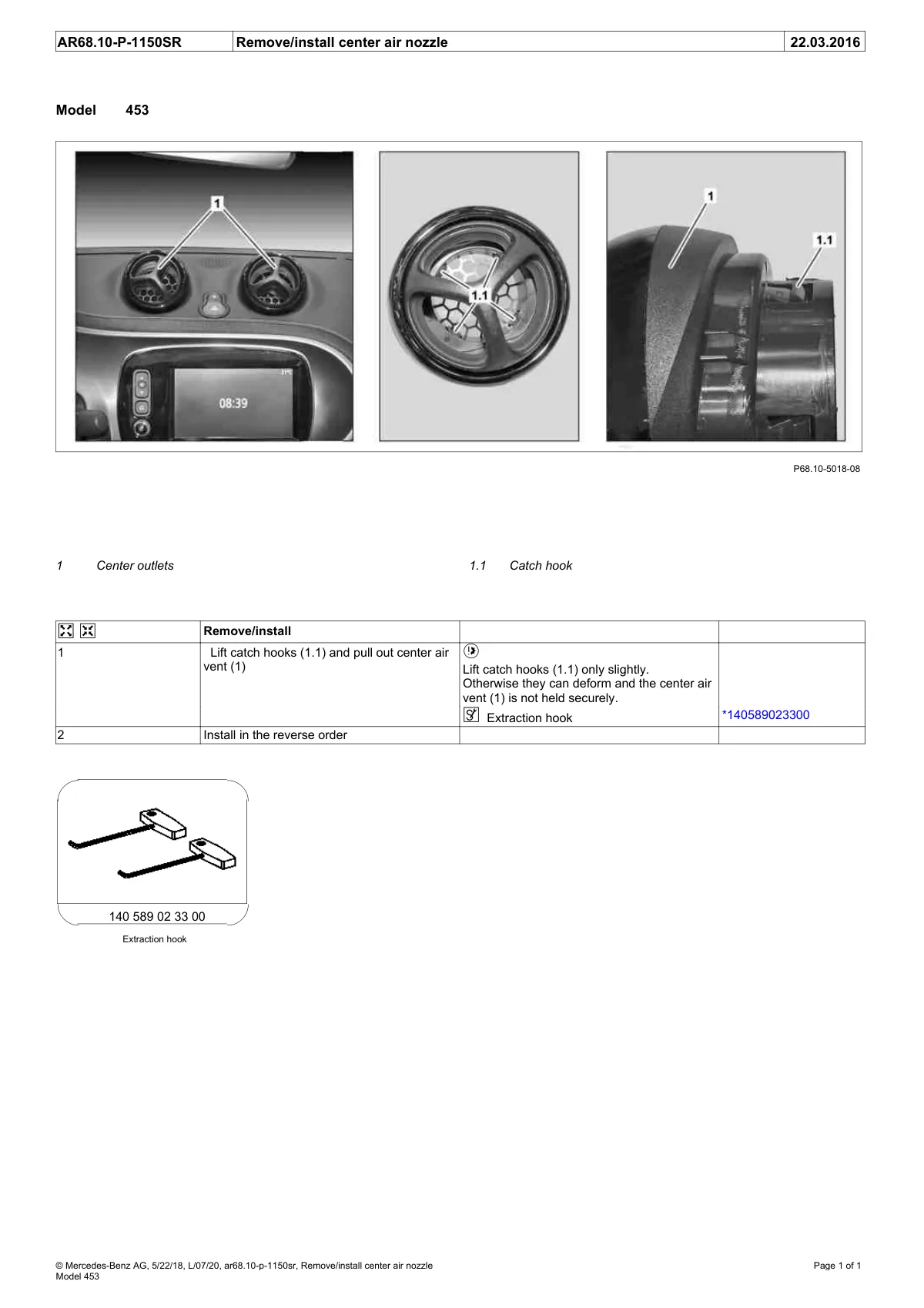

Model 453 center air nozzle removal and installation procedure with catch hooks and extraction tool.

Dashboard air vents and nozzle disassembly steps for Smart Fortwo 453
