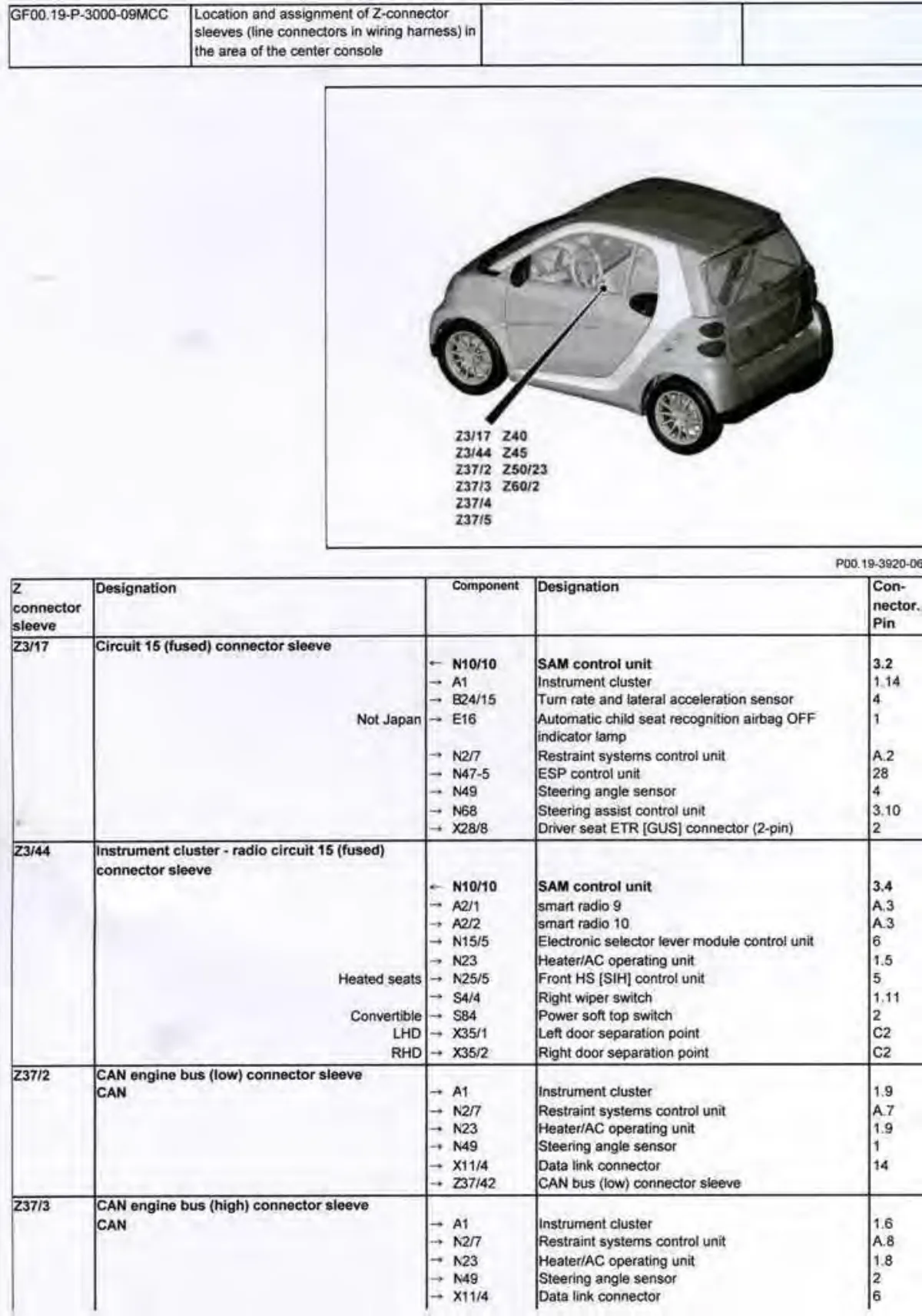

Z-connector sleeve locations and assignments for center console wiring harness in smart fortwo, circuit 15 and CAN bus connectors.
%20-%20Technical%20%26%20Service%20Reference/p185.webp)
See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
