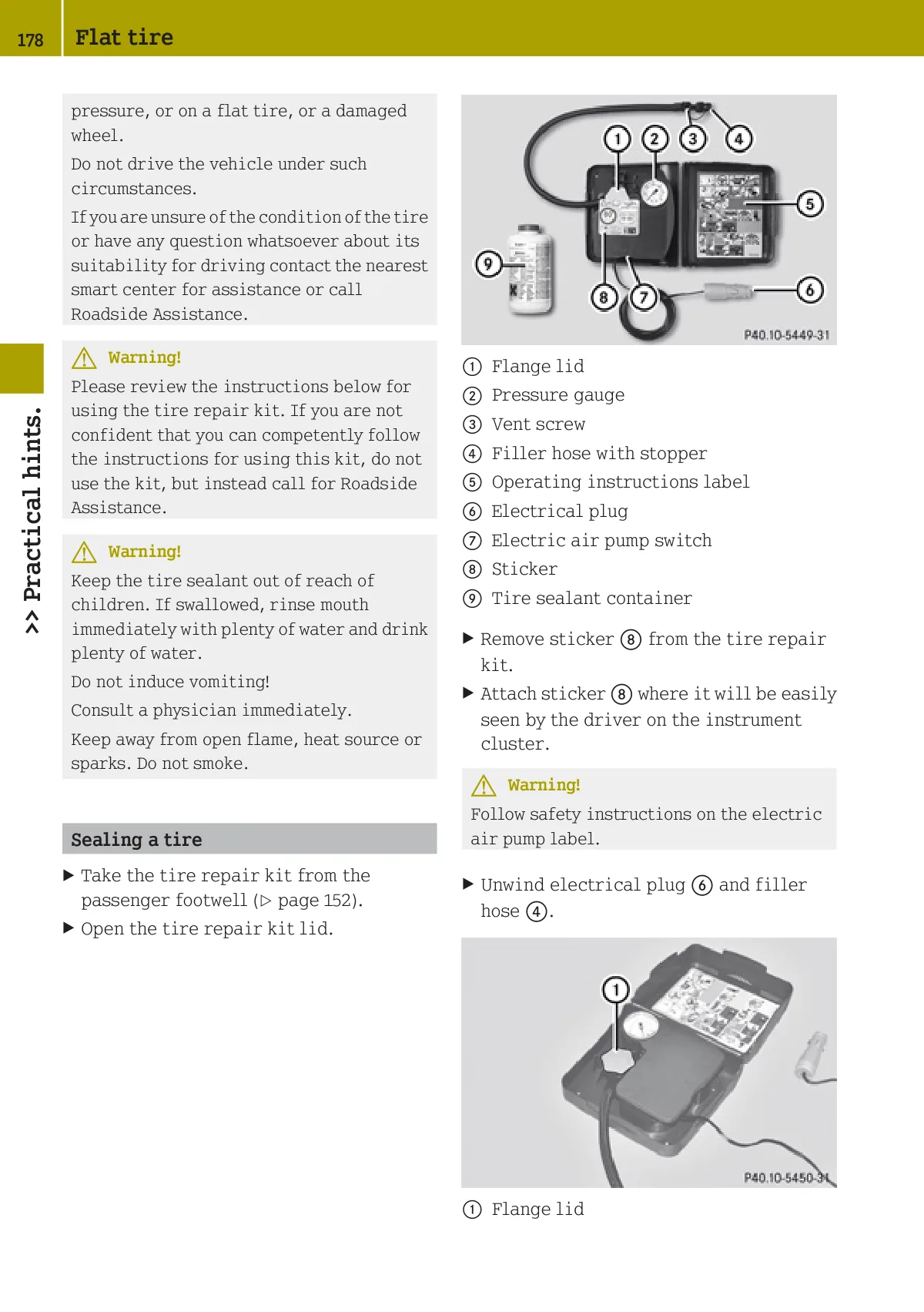

Flat tire repair kit components and sealing procedure with numbered callouts for pressure gauge, vent screw, filler hose, and electric air pump.

Tire repair kit diagram showing flange lid, pressure gauge, vent screw, filler hose, operating instructions label, electrical plug, air pump switch, sticker, and sealant container.

Chassis: Fortwo (451)
System: Chassis · Wheels & tires
Figure type: Exploded view
Source: Fortwo 451 2009 NA Operator Manual, page 180 Open manual →
Callouts: 9 numbered callouts visible on the figure

Parts referenced

Flange lid
Pressure gauge
Vent screw
Filler hose with stopper
Operating instructions label
Electrical plug
Electric air pump switch
Sticker
Tire sealant container

tireservice procedurecallout numberedexploded view
