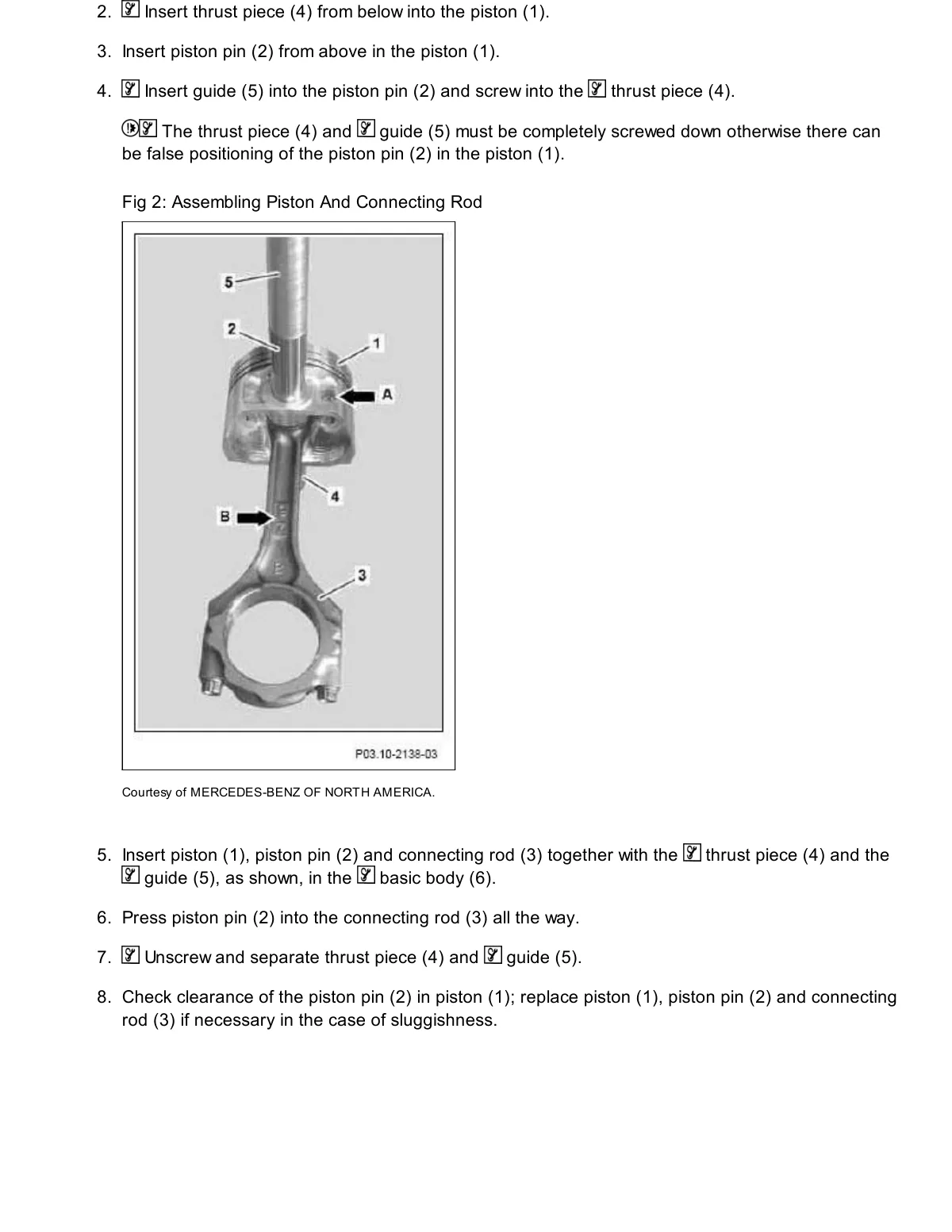

Piston and connecting rod assembly procedure showing thrust piece, guide, piston pin, and connecting rod installation steps.

Exploded view diagram of piston, connecting rod, thrust piece, guide, and piston pin assembly with numbered callouts.
