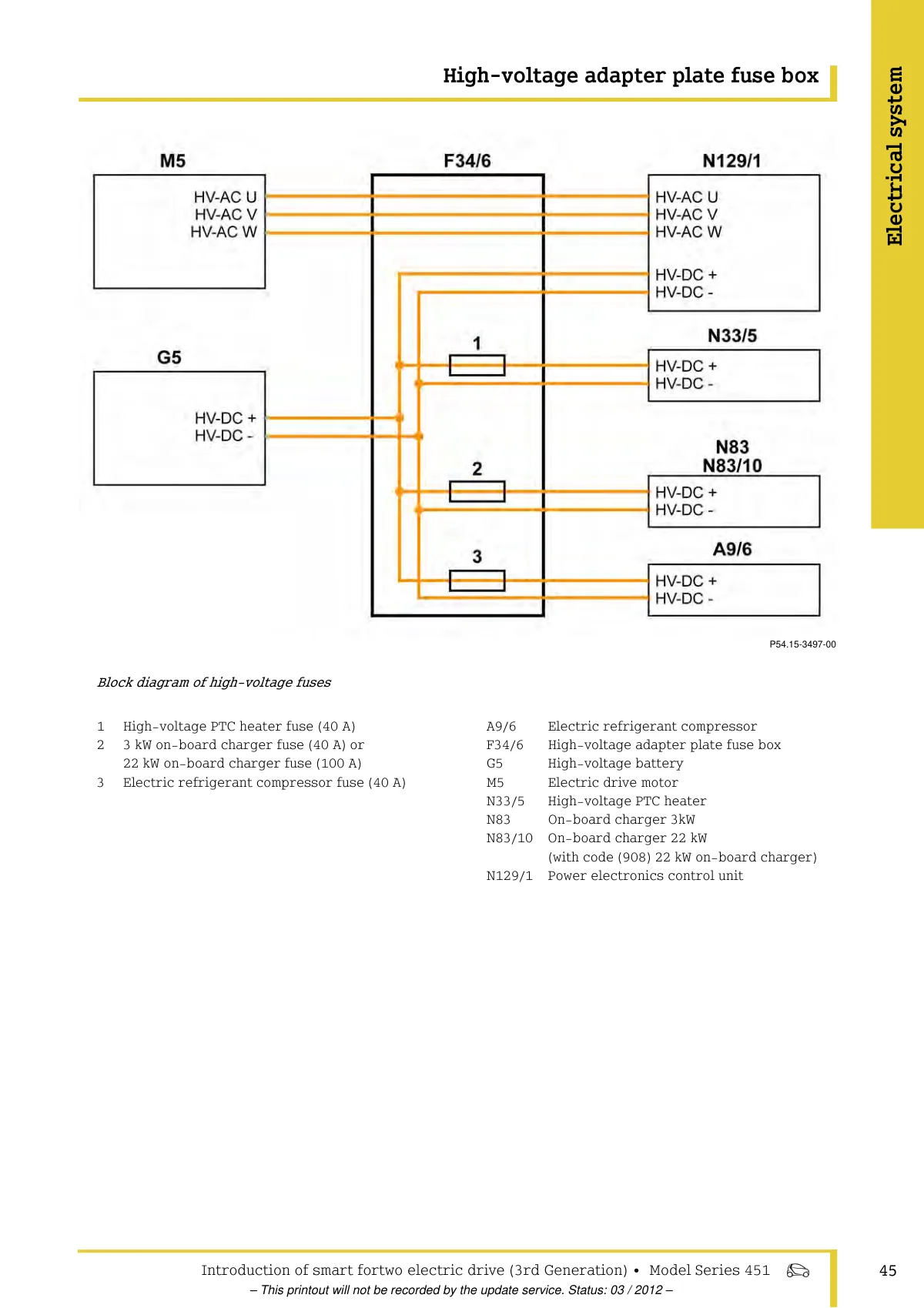

High-voltage adapter plate fuse box block diagram showing three numbered fuse positions and connections to battery, motor, charger, and control modules.
