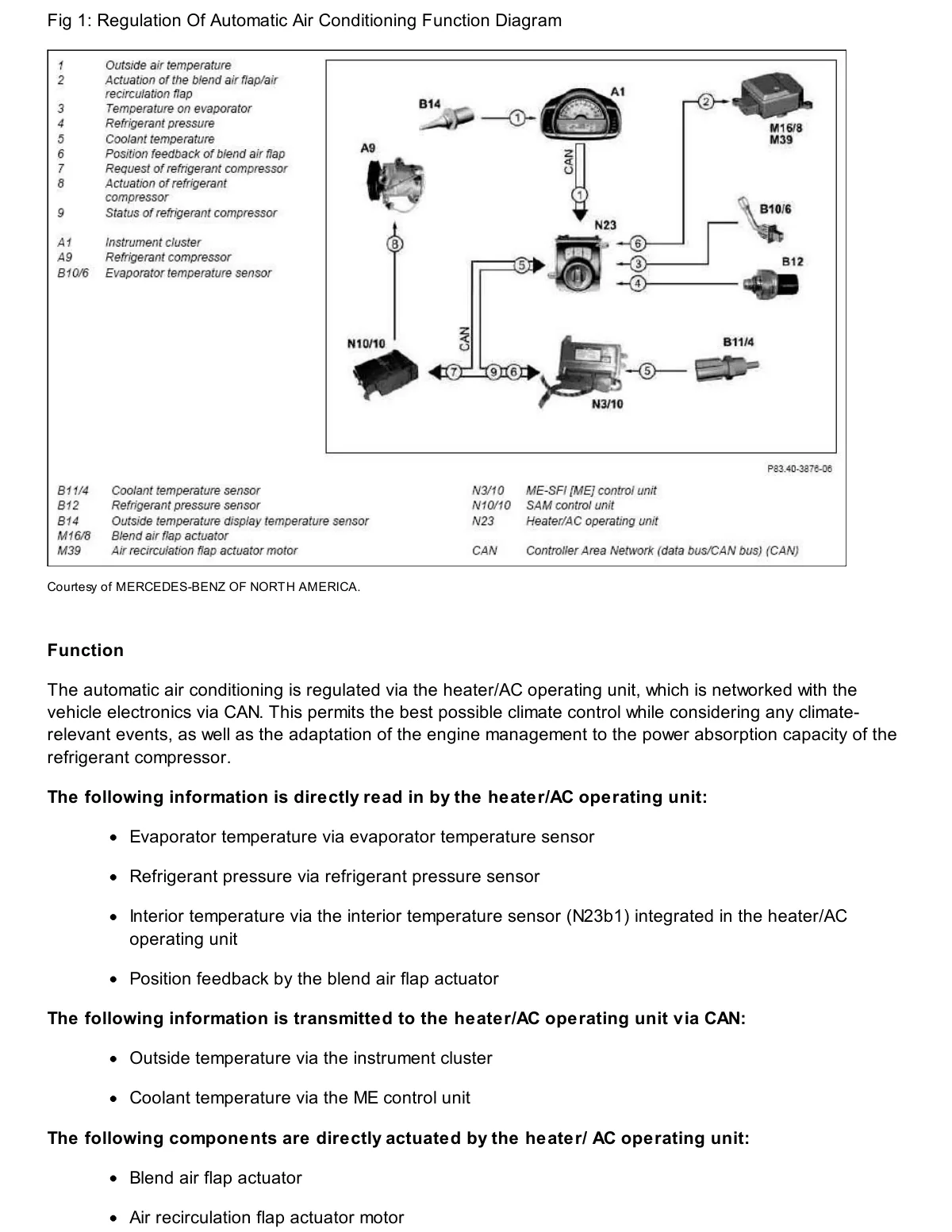

Automatic air conditioning function diagram showing sensor inputs, control units, and actuators networked via CAN bus on smart 450/451/452/454.

Schematic of AC system components including compressor, evaporator, sensors, and control modules connected by CAN.
