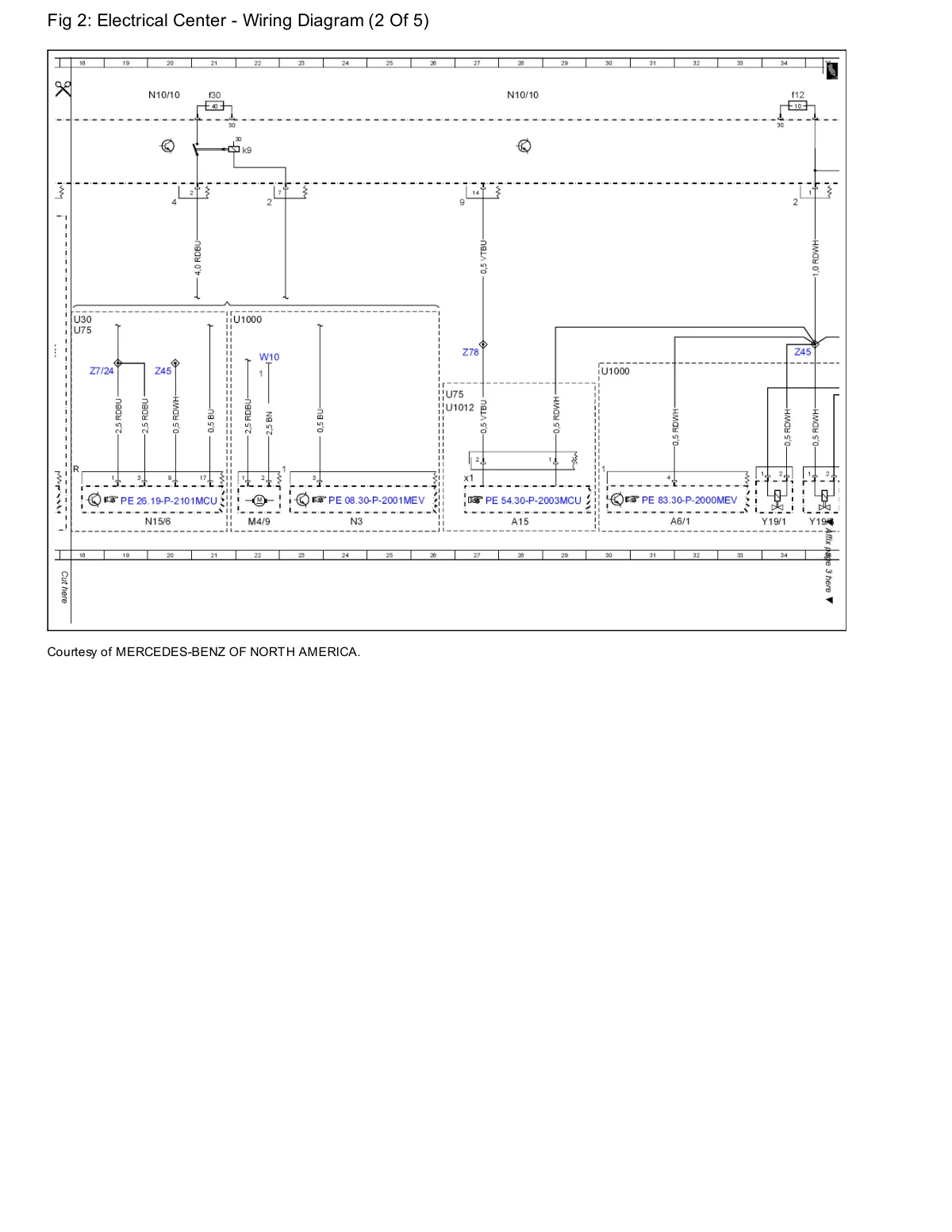

Electrical Center wiring diagram sheet 2 of 5 showing relay and module circuits with component connections and ground points.

Wiring schematic for smart electrical center with relays, modules, and wiring paths labeled with reference designators.
