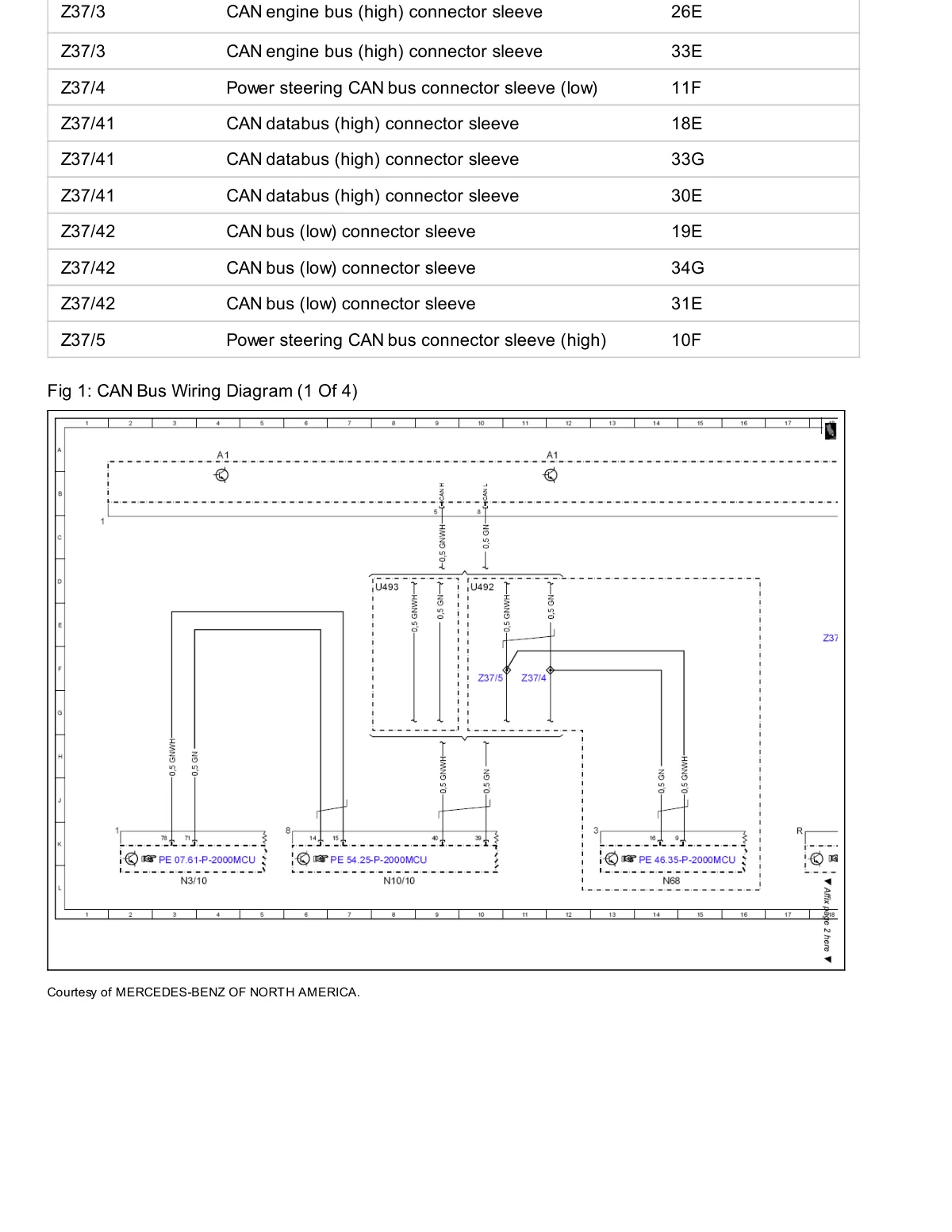

CAN bus wiring diagram (1 of 4) showing connector sleeves and module connections for chassis 450/451/452/454.

CAN bus wiring schematic with labeled connector sleeves, control modules, and interconnecting wires.
