Heater/ventilation operating unit removal and installation procedure for Smart 454 chassis with numbered callouts and step-by-step instructions.

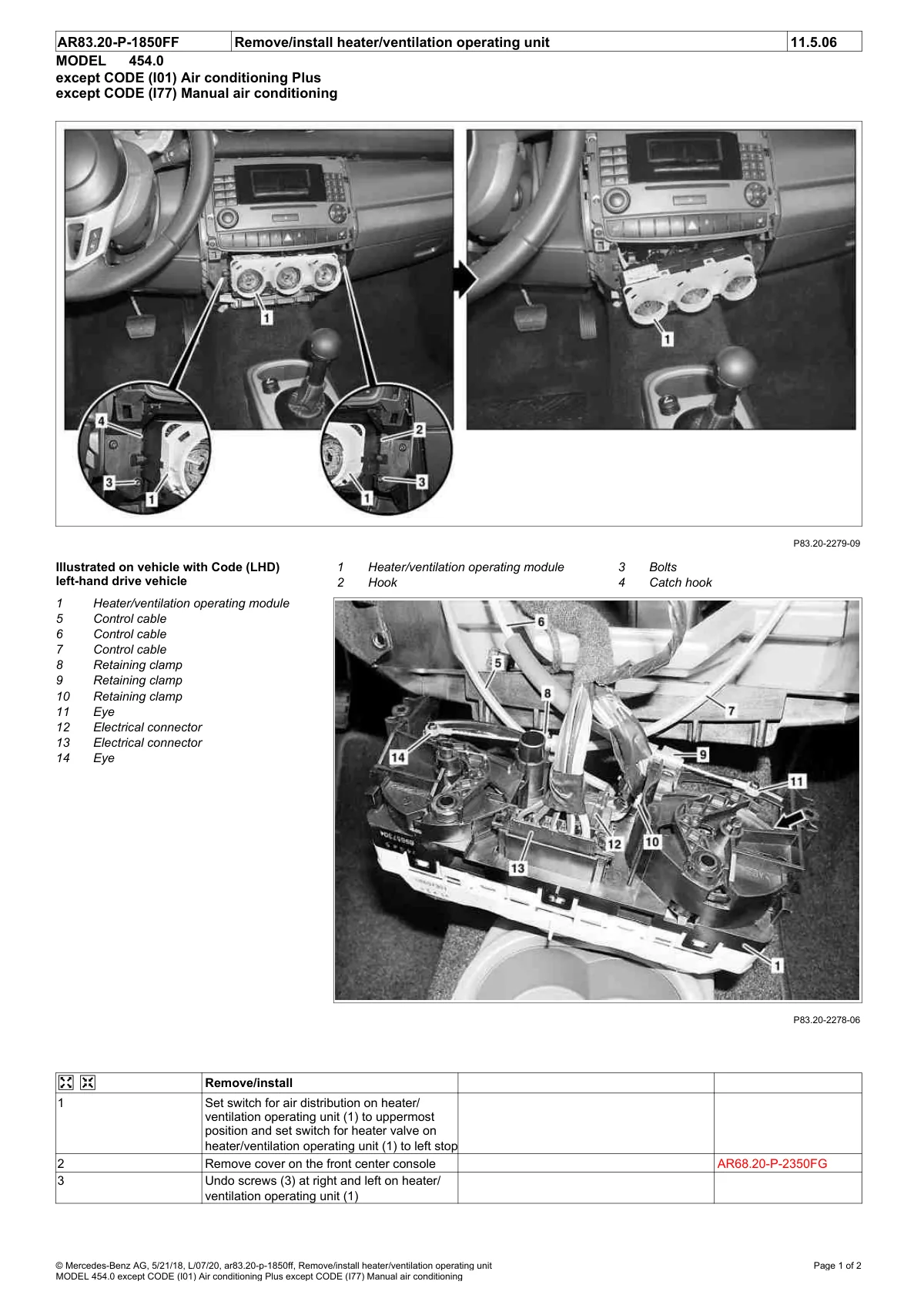

Service manual page showing heater unit removal steps with dashboard photos and detailed component callouts
