Air conditioning expansion valve removal and installation procedure for Smart Fortwo 453 with Engine 281 and CODE 101/I77.

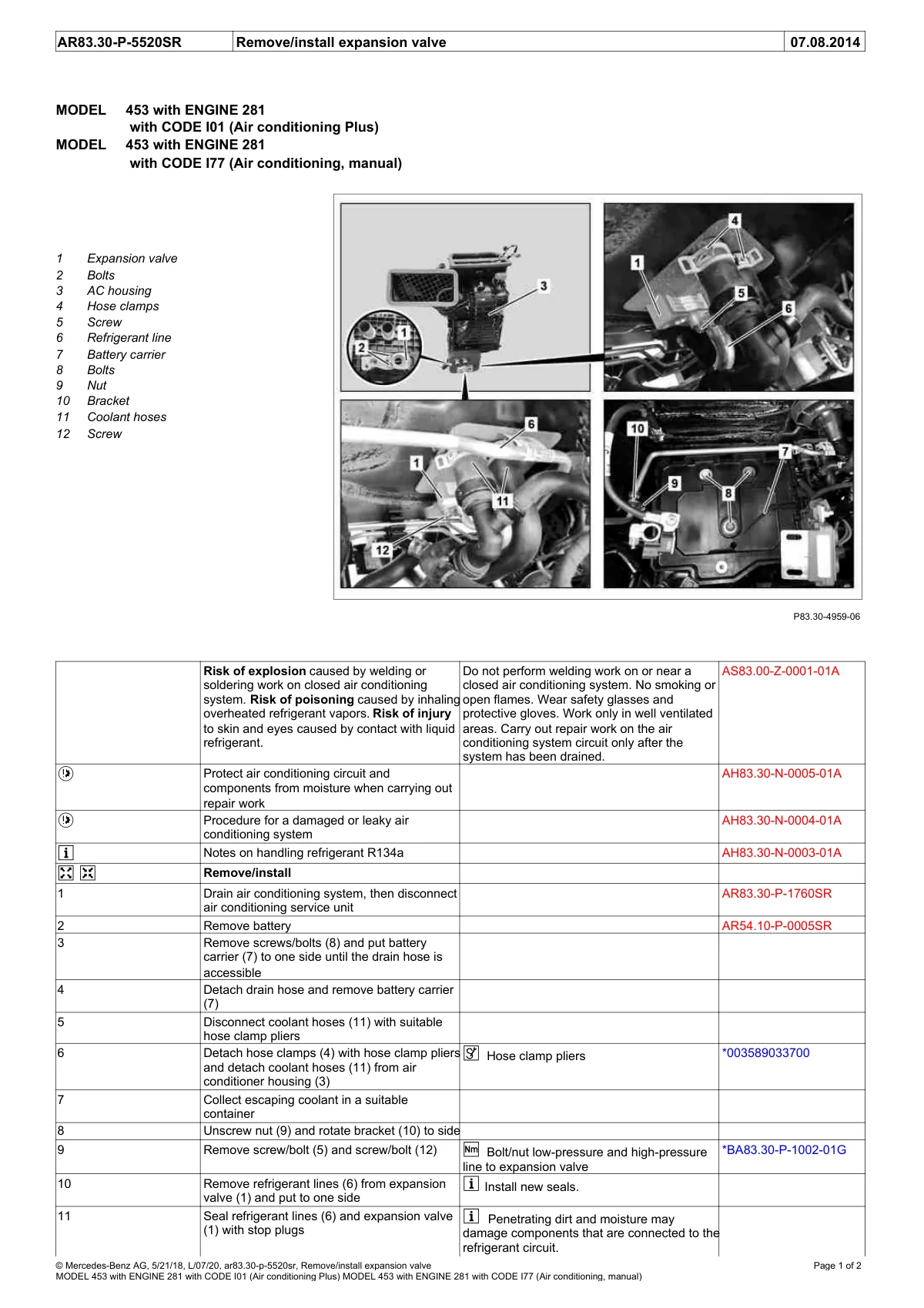

Technical service manual page showing expansion valve components, callout diagrams, and step-by-step removal/installation instructions.
