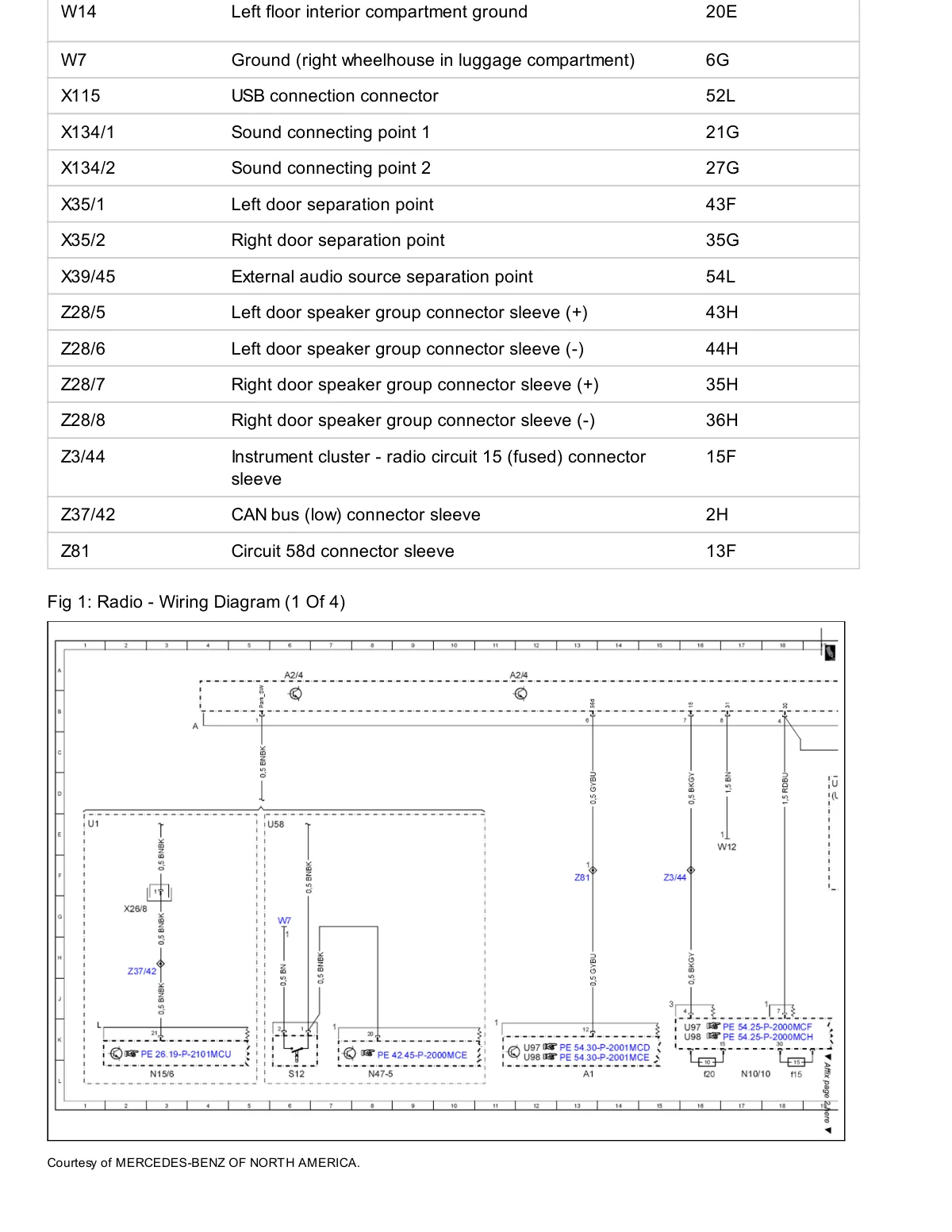

Radio wiring diagram (1 of 4) showing ground points, USB connector, speaker connectors, CAN bus, and circuit connections for Smart 450/451/452/454.

Radio wiring schematic with labeled connectors, ground points, and circuit paths for Smart vehicles.
