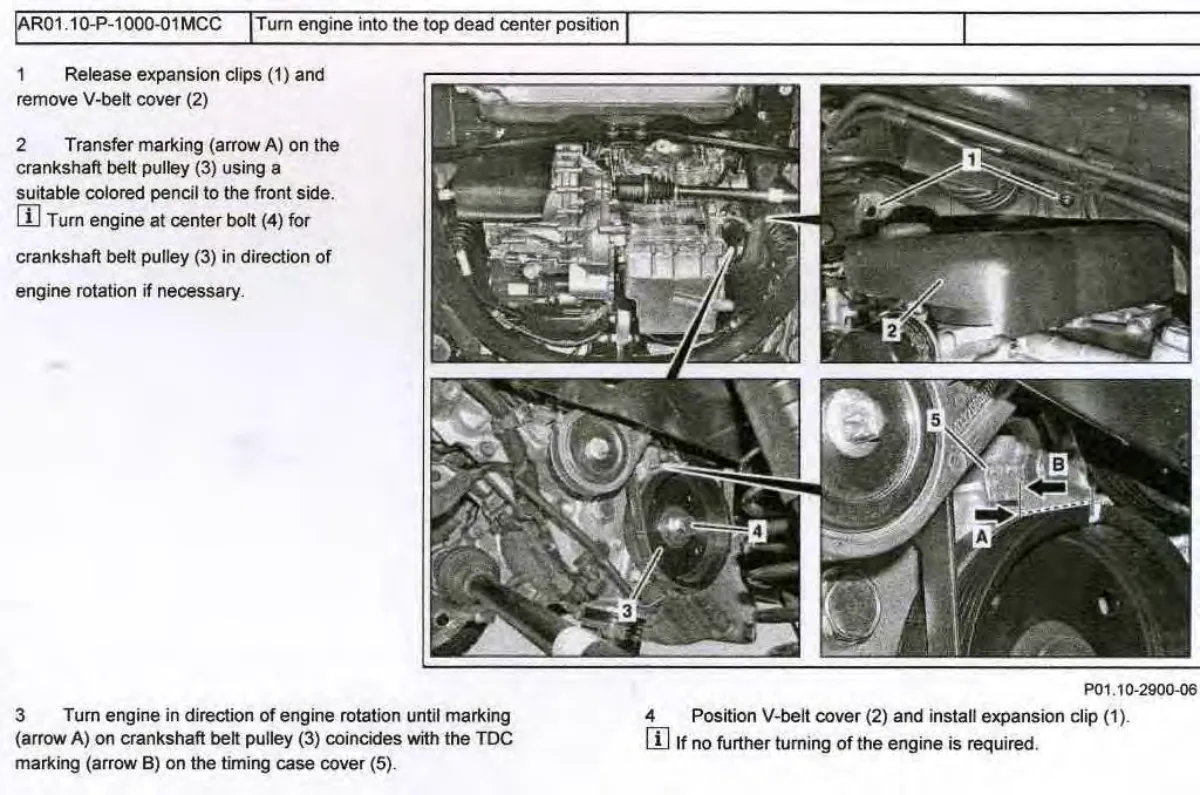

Engine timing procedure for smart fortwo 450/451: crankshaft belt pulley alignment and V-belt cover removal steps.

Four photographs showing engine compartment with numbered callouts for V-belt cover removal and crankshaft pulley marking alignment.

View full-size image ↗

See all Powertrain figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
